Hey Reader, In this post, we will describe how to install Xen Server tools on Linux operating systems like Ubuntu, CentOS, RedHat. Xen server tools help you fetch additional information for monitoring, Operating System type, get private IP address in a networking tab,  root-cause analysis, and many more.

Read Also:- How to install and setup Nord VPN on Ubuntu 20.04 LTS

Read Also:- How to Install uTorrent on Ubuntu 18.04 and Ubuntu 20.04 LTS

Read Also:- How to Hide Apache, Nginx, or PHP version on Ubuntu

Clients should install XenServer Tools on individual VM to be able to perform the following actions:

* Customize the number of vCPUs on a running Linux VM (Windows VMs require a reboot for this to take effect)

*  View VM performance data in XenCenter

* Create quiesced snapshots or snapshots with memory (checkpoints), or revert to snapshots

* Migrate a running VM (using XenMotion or Storage XenMotion)

Following instructions to install Xen Server tools on Linux/Ubuntu

Step 1.

Insert the XenTools ISO in the DVD drive of the Linux VM.

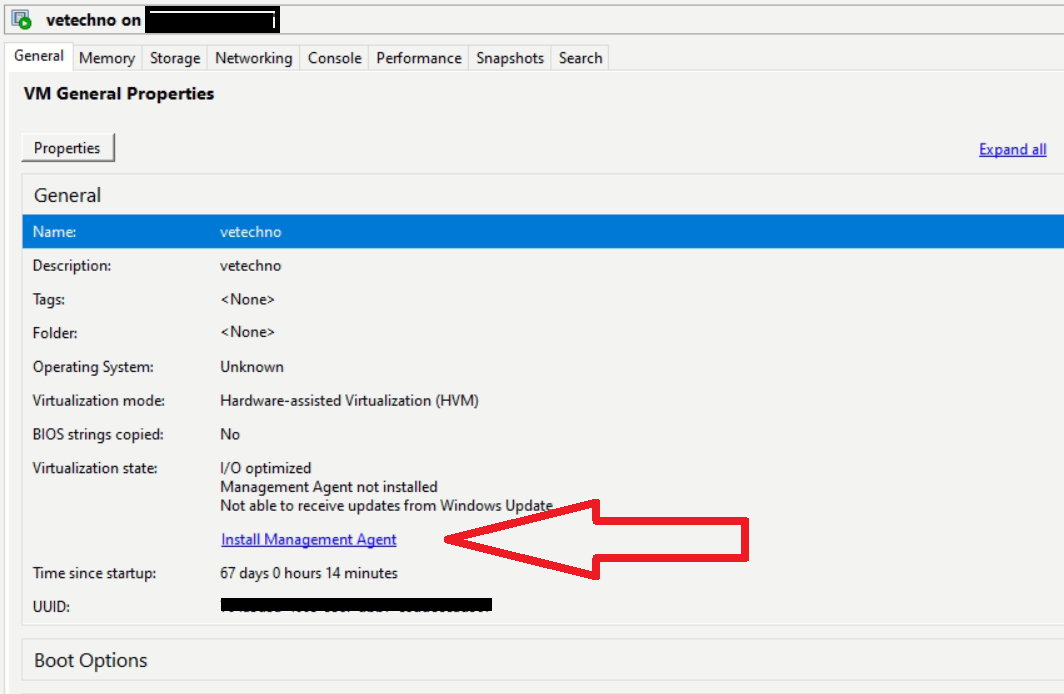

a).  Click on Install Management Agent.

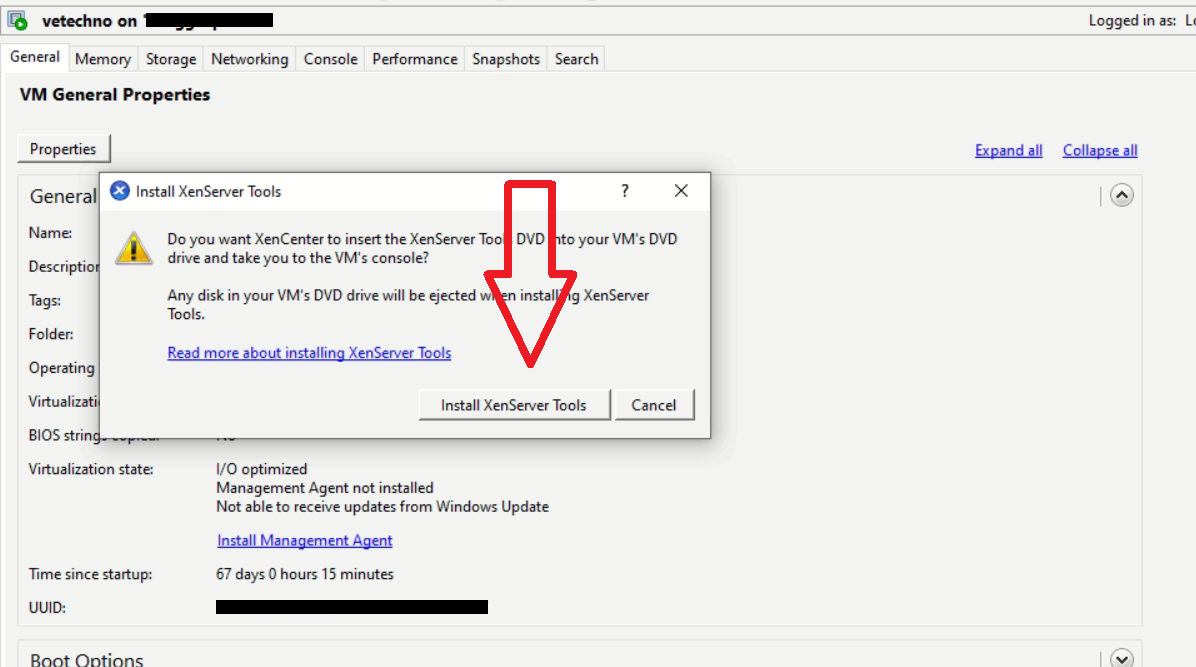

b). Click on Install XenServer Tools.

Step 2.

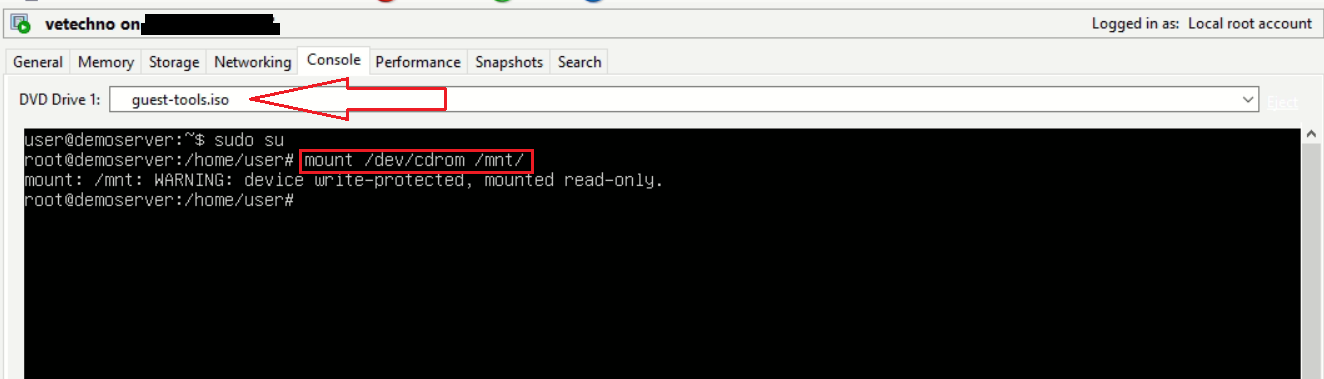

Now in the DVD drive 1. guest-tools.iso is loaded as shown in the below image.

Mount the DVD drive to /mnt using : “mount /dev/xvdd /mnt“

Note:-  xvdd is my mount drive.

It says , mount : block device /dev/xvdd is write-protected, mounting read-only

Note :- In some Linux distro the location of the tools could be /dev/cdrom

So, if in your case  /dev/xvdd is not working then try as shown in below image:-
                “mount /dev/cdrom /mnt“

Step 3.

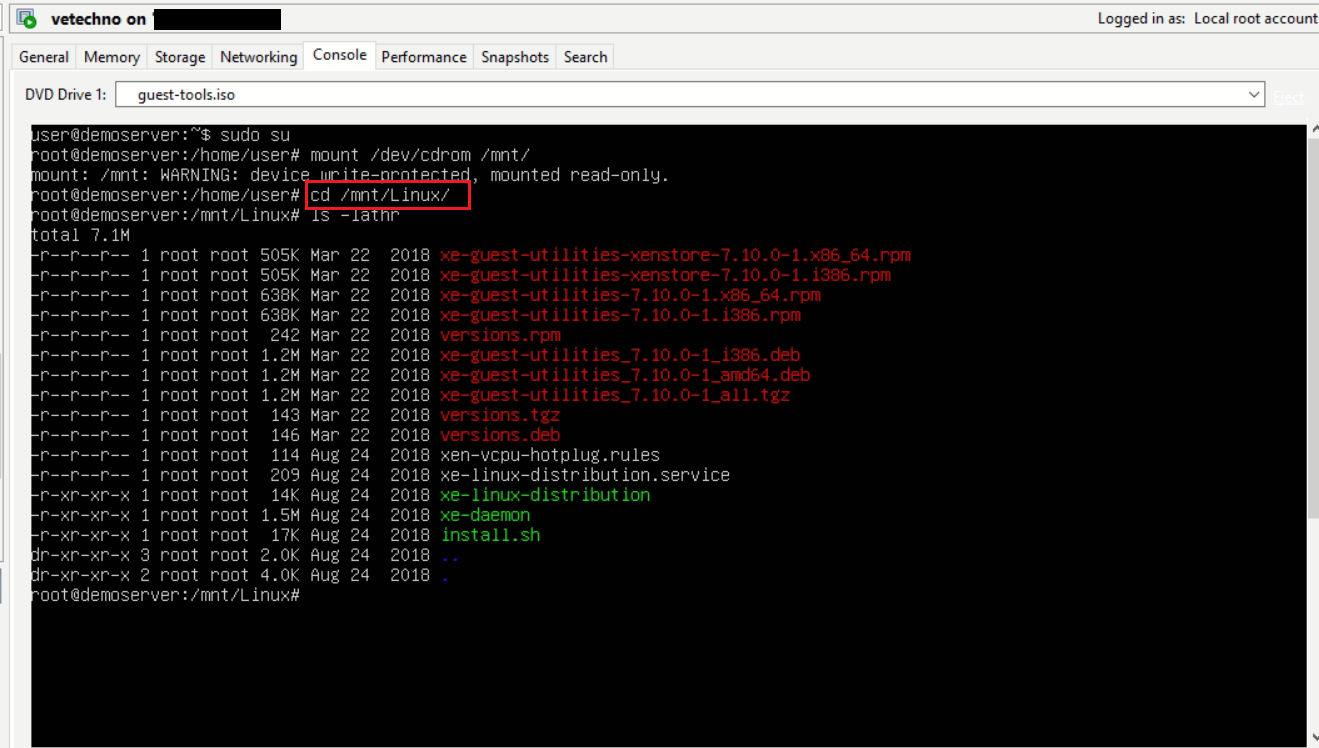

Now change the directory to /mnt using “cd /mnt/Linux/” and then list the contents using “ls -lathr“

Step 4.

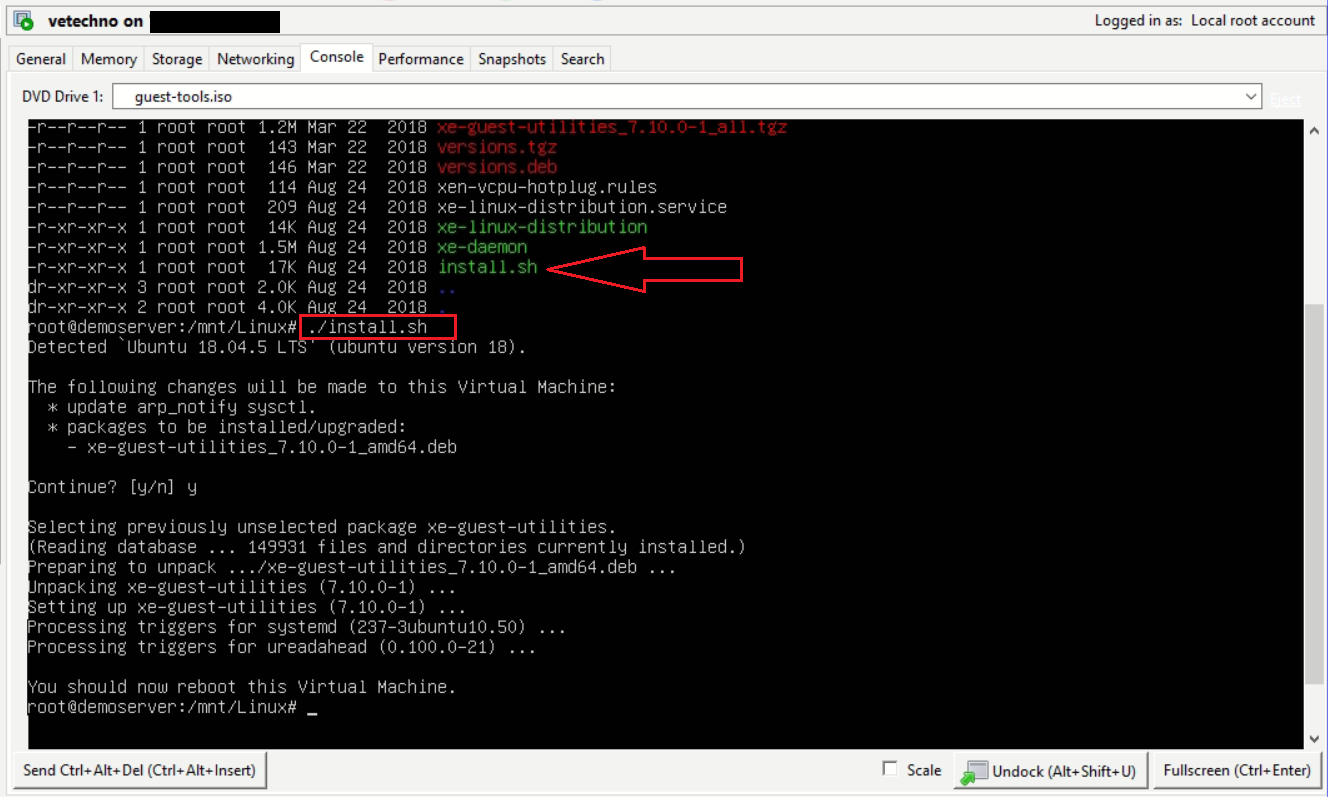

Use ./install.sh to install the XenTools on Ubuntu.
               Continue? [y/n] y

Step 5.

Reboot the VM  machine to change the reflect.

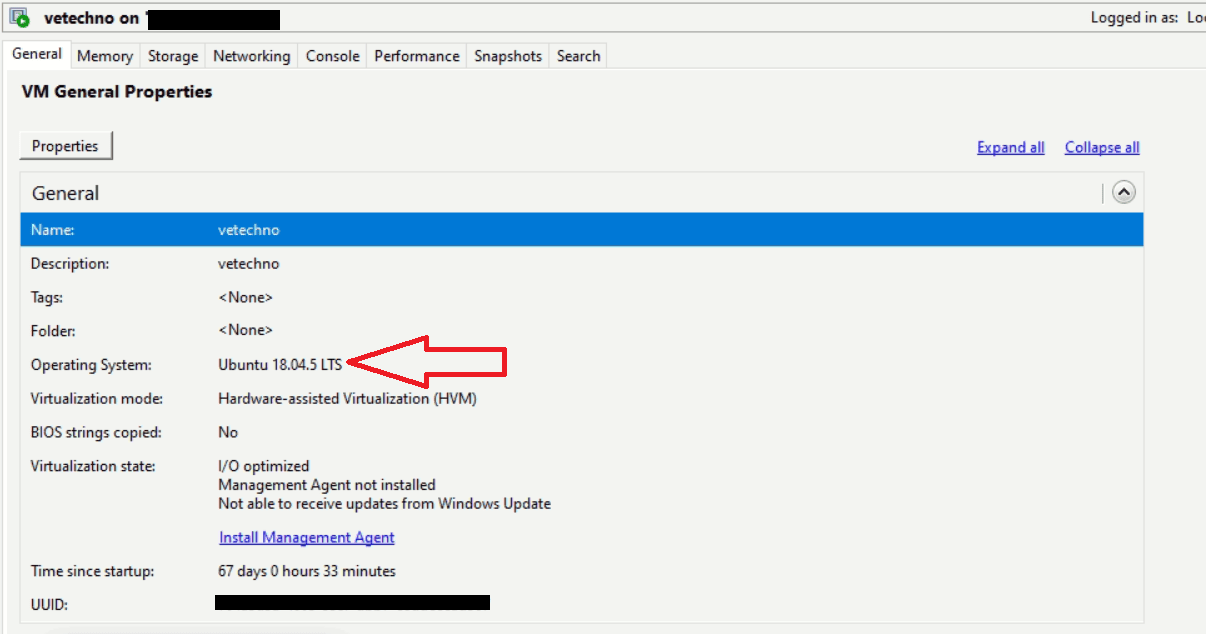

Now you will be able to get additional information for monitoring, Operating System type, IP address in the networking tab etc.
